Smoky Nickel

Real Gold

€11.90*

Content: 0.05 Liter (€238.00* / 1 Liter)

(€10.00 ohne MwSt.)

Prices incl. VAT plus shipping costs

Available, delivery time: 1-2 days

50ml

100ml

250 ml

500 ml

1000 ml

2000 ml

Product number: BMG-200

PDF offer

Create PDF offer for this product Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.

Product information "Smoky Nickel"

Product Information Betzmann Electroplating - Black Nickel Electrolyte

Our black nickel electrolyte for galvanic blackening of metals

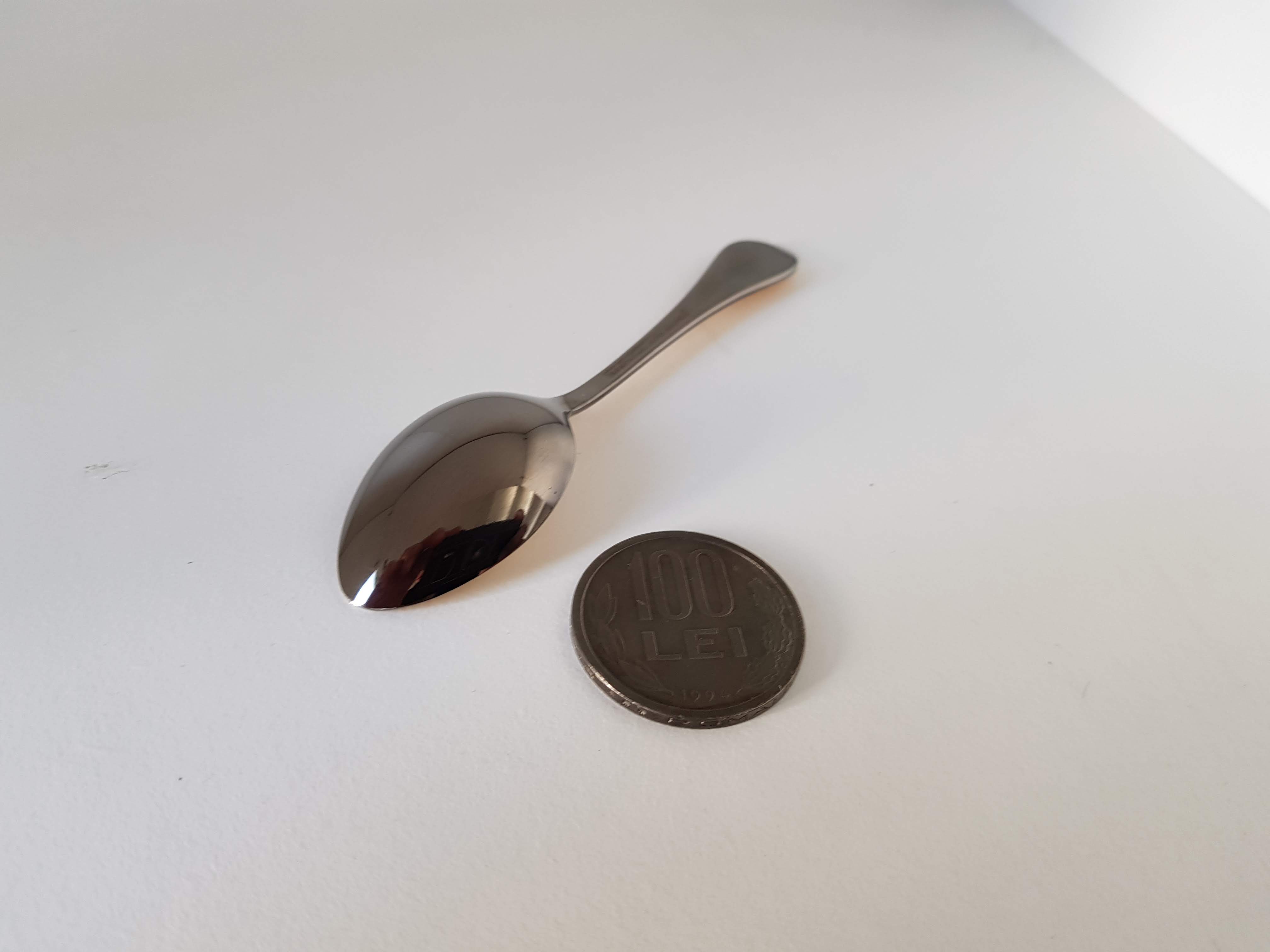

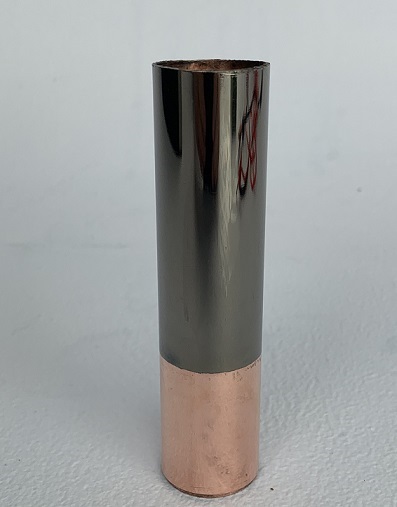

This new black nickel electrolyte conjures a dark to black surface directly on stainless steel, brass or copper!

polish surface if necessary degrease and activate

Black nickel plating from 3 volts optimal with platinum electrode!

Like all nickel electrolytes, this one is not suitable for coating metals worn on the skin!

A special surface sealing is not necessary. Temperature resistance up to approx. 200 degrees!

In many cases, a base layer of normal nickel is recommended for components made of the metals mentioned for long durability, especially on copper and its alloys in outdoor applications. This increases the corrosion resistance and leads to better results. For this bright nickel layer we recommend the normal nickel Free.

Before applying the Smoky Nickel, prepare the component with great care to achieve the best results. This includes, above all, thorough cleaning and absolutely grease-free surfaces. Therefore, remove all impurities such as dirt, flash rust and the like and use for our electrocleaner! Wear protective gloves already during the degreasing process to prevent skin grease from being deposited on the component.

The black nickel is suitable for use in bath electroplating as well as for pin electroplating.

The following anodes are suitable for the smoky nickel:

Nickel anodes

Graphite anodes

Platinum anodes

Stainless steel anodes permitted for pin electroplating

For plating, the anode is switched to positive and the workpiece to negative.

Observe the formation of gas bubbles closely during the electroplating process. If too many gas bubbles rise on the workpiece, the voltage must be reduced. This also applies if an intense black coloration appears in places. If no deposition occurs, the voltage is too low and must be carefully increased. All in all, deposition is slower with black nickel electrolytes than with normal nickel electrolytes.

Wear appropriate protective clothing throughout the process and ensure good room ventilation.

Parameters (these may vary, please test):

Bath electroplating: 2-8V (approx. 3-5V recommended).

Pin plating: 6-10V (approx. 6-8V recommended)

Current density: 1-5 A/dm²

Working temperature: 15-50°C

pH value: approx. 4-5 (can be corrected e.g. with citric acid or sulfuric acid)

Deposition rate: approx. 0.5μm/min at 2.5A/dm² and 20°.

Blackness L* (CIE Lab measurement): 42-47

Operating Conditions and Deposit Data

Voltage Range 2.5 – 4.0 volts

Temperature 18 – 40 °C

Nickel Concentration 74 g/l

Electrode Platinum (see notes)

Blackness L* (CIE Lab measure) 40 – 45

Plating Rate at (3.5 volts, Platinum electrode)

Approx. 0.5 micron per minute (spot)

Hardness 450 – 480 MPa (Vickers)

Density of deposit 8.5 g/cm3

Stress High stress

Special storage requirements None

Shelf life Over 5 years

Health and Safety classification Harmful

Special considerations None Transport (UN number) None: Not classified as dangerous for transport

Notes: A gold flash layer will be needed when plating smoky nickel onto stainless steel. Plating rates are calculated over a sample area which is permanently covered by swab. It is possible to gold plate directly over a smoky chrome layer.

HS Code: 3824 99 70

Similar Items

Platinum Electrode

Platinum electrode from Betzmann-Galvanik: We know that when plating with gold or silver, you want to achieve only the best results and this is achieved by using our platinum electrode (platinized titanium). This will more than meet your requirements. It hardly wears out and leaves no black spots or stains when plating. For top quality gold plating, we recommend the use of this electrode. Care should be taken to clean the electrode carefully after each use! Properties "Platinum Electrode 6 mm Platinum electrode (platinized titanium with a platinum layer of 2.5 µm platinum) Ø 6 mm x 100 mm Standard electrode for experiments in electrochemistry (electroplating, electrolysis, ion migration, determination of electrochemical potentials, etc.) Spare platinum electrode for Hofmann decomposition apparatus, electrolyzer Platinum-coated titanium anodes are among the classic anode materials for electroplating because they combine the excellent electrochemical properties of platinum with the good corrosion properties of titanium. They are characterized by a long service life at high current density and are versatile in use. They are equally suitable for platinum and ruthenium baths, for hard chrome plating, as bright rhodium baths and for cathodic corrosion protection. The standard platinum layer thickness is 2.5 μm. In order to achieve the best results when plating with gold (adhesive gold bath, bright gold plating bath) or silver, they are indispensable. This platinum electrode will more than meet your requirements, it hardly wears out and leaves no black spots or stains when plating. For top quality gold plating, I recommend using this electrode. Other possible applications: Water electrolysis/separation of hydrogen and oxygen, water disinfection, production of chlorates (chlorate synthesis) and perchlorates. Recommended operating data: Operating voltage from 3 volts distance anode/workpiece surface 5 cm anodic current intensity (specific current density) max. 75 A/dm² (7.5 mA/mm² = 750 mA/cm²), i.e. a multiple of the values typical in electroplating (0.5 ... 5 A/dm²) pH value: 0 - 11 Bath temperature max. 60 °C

€49.90*

Metal Polish Ultrafine

Ultra-fine metal polish from Betzmann GalvanikSuitable for a wide range of applications: Spectacular shine, polishing out minor scratches, removing light rust and oxidation. Can be used on various materials: metals (aluminum, copper, brass, stainless steel, chrome, etc.), plastic, paint, and fiberglass.

Content: 0.1 Liter (€125.00* / 1 Liter)

From €12.50*

Details

Anode sleeve fuzzy

Anode pad / tampon / anode sleeve / fuzzy sleeve / replacement fabric pad puffy from Betzmann Galvanik. This puffy fabric pad / anode sleeve or also called tampon is absolutely recommended for all plating processes. Optimally suitable for all coatings and electrolytes. The coating of larger areas is also quite fast with this pad. The insertion hole is larger than the electrode and therefore it happens that the moist anode pad slips off. Therefore, fix the pad on the electrode with a small rubber band.

€2.38*

Carbon Electrode 6mm

Graphite round rod - Graphite rod anode - Graphite electrode for gold plating. Graphite electrodes are ultimate for all coatings. The advantage is that in some coatings with stainless steel electrodes, the dislodged metal parts disturb the coating. This does not happen with graphite electrodes, because graphite also filters out contaminated liquids. With bath electroplating, they also need to be replaced occasionally as they slowly dissolve during the plating process. With pad electroplating, simply loosen the screw on the handle and replace with a new one. Diameter 6 mm, length approx. 9 cm Features Used for Doesn’t contaminate Cleaner Activating and electro-cleaning Its resistive properties help to heat the solution you’re plating with Chromium plating, which needs to be plated at 25 degrees celsius; its natural heating action helps to maintain the solution’s optimal temperature Low cost Can be used for all plating processes but carbon electrodes deteriorate over a period of time and discolour swabs (discolouration does not affect the plating quality)

€6.00*
