Smoky Nickel

€11.90*

Content: 0.05 Liter (€238.00* / 1 Liter)
(€10.00 ohne MwSt.)

Available in 1 day, delivery time 1-2 days

ml
Product number: BMG-200
PDF offer
Create PDF offer for this product Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product information "Smoky Nickel"

Product Information Betzmann Electroplating - Black Nickel Electrolyte



Our black nickel electrolyte for galvanic blackening of metals

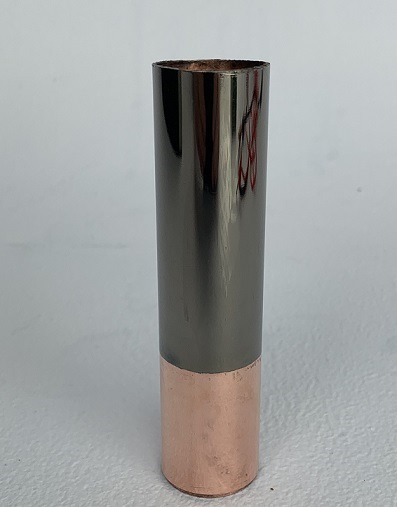

This new black nickel electrolyte conjures a dark to black surface directly on stainless steel, brass or copper!

polish surface if necessary degrease and activate

Black nickel plating from 3 volts optimal with platinum electrode!



Like all nickel electrolytes, this one is not suitable for coating metals worn on the skin!

A special surface sealing is not necessary. Temperature resistance up to approx. 200 degrees!



In many cases, a base layer of normal nickel is recommended for components made of the metals mentioned for long durability, especially on copper and its alloys in outdoor applications. This increases the corrosion resistance and leads to better results. For this bright nickel layer we recommend the normal nickel Free.

Before applying the Smoky Nickel, prepare the component with great care to achieve the best results. This includes, above all, thorough cleaning and absolutely grease-free surfaces. Therefore, remove all impurities such as dirt, flash rust and the like and use for our electrocleaner! Wear protective gloves already during the degreasing process to prevent skin grease from being deposited on the component.



The black nickel is suitable for use in bath electroplating as well as for pin electroplating.

The following anodes are suitable for the smoky nickel:

Nickel anodes

Graphite anodes

Platinum anodes

Stainless steel anodes permitted for pin electroplating

For plating, the anode is switched to positive and the workpiece to negative.



Observe the formation of gas bubbles closely during the electroplating process. If too many gas bubbles rise on the workpiece, the voltage must be reduced. This also applies if an intense black coloration appears in places. If no deposition occurs, the voltage is too low and must be carefully increased. All in all, deposition is slower with black nickel electrolytes than with normal nickel electrolytes.



Wear appropriate protective clothing throughout the process and ensure good room ventilation.



Parameters (these may vary, please test):

Bath electroplating: 2-8V (approx. 3-5V recommended).

Pin plating: 6-10V (approx. 6-8V recommended)

Current density: 1-5 A/dm²

Working temperature: 15-50°C

pH value: approx. 4-5 (can be corrected e.g. with citric acid or sulfuric acid)

Deposition rate: approx. 0.5μm/min at 2.5A/dm² and 20°.

Blackness L* (CIE Lab measurement): 42-47



madeingermany-betzmann



Smoky Nickel - Schwarz Nickel

GHS07ENF5LtKTBYblK

Signal word: Caution

H-phrases:

H317: May cause an allergic skin reaction.

P phrases:

P102: Keep out of the reach of children.

P260: Do not breathe aerosol.

P280: Wear protective gloves / eye protection.

P302 + P352: IF ON SKIN: Wash with plenty of water.

P501: Dispose of contents/container to special waste



Operating Conditions and Deposit Data

Voltage Range 2.5 – 4.0 volts
Temperature 18 – 40 °C
Nickel Concentration 74 g/l
Electrode Platinum (see notes)
Blackness L* (CIE Lab measure) 40 – 45
Plating Rate at (3.5 volts, Platinum electrode) Approx. 0.5 micron per minute (spot)
Hardness 450 – 480 MPa (Vickers)
Density of deposit 8.5 g/cm3
Stress High stress
Special storage requirements None
Shelf life Over 5 years
Health and Safety classification Harmful
Special considerations None
Transport (UN number) None: Not classified as dangerous for transport

Notes:

  • We strongly advise against the use of stainless steel anodes for most of our plating processes
  • Plating rates are calculated over a sample area which is permanently covered by swab.





0 of 0 reviews

Leave a review!

Share your experiences with other customers.


Similar Items

Platinum Electrode
Platinum electrode from Betzmann-Galvanik:   We know that when plating with gold or silver, you want to achieve only the best results and this is achieved by using our platinum electrode (platinized titanium). This will more than meet your requirements. It hardly wears out and leaves no black spots or stains when plating. For top quality gold plating, we recommend the use of this electrode.   Care should be taken to clean the electrode carefully after each use!     Properties "Platinum Electrode 6 mm Platinum electrode (platinized titanium with a platinum layer of 2.5 µm platinum) Ø 6 mm x 100 mm Standard electrode for experiments in electrochemistry (electroplating, electrolysis, ion migration, determination of electrochemical potentials, etc.) Spare platinum electrode for Hofmann decomposition apparatus, electrolyzer Platinum-coated titanium anodes are among the classic anode materials for electroplating because they combine the excellent electrochemical properties of platinum with the good corrosion properties of titanium. They are characterized by a long service life at high current density and are versatile in use. They are equally suitable for platinum and ruthenium baths, for hard chrome plating, as bright rhodium baths and for cathodic corrosion protection. The standard platinum layer thickness is 2.5 μm.   In order to achieve the best results when plating with gold (adhesive gold bath, bright gold plating bath) or silver, they are indispensable.   This platinum electrode will more than meet your requirements, it hardly wears out and leaves no black spots or stains when plating. For top quality gold plating, I recommend using this electrode.   Other possible applications: Water electrolysis/separation of hydrogen and oxygen, water disinfection, production of chlorates (chlorate synthesis) and perchlorates.   Recommended operating data:   Operating voltage from 3 volts distance anode/workpiece surface 5 cm anodic current intensity (specific current density) max. 75 A/dm² (7.5 mA/mm² = 750 mA/cm²), i.e. a multiple of the values typical in electroplating (0.5 ... 5 A/dm²) pH value: 0 - 11 Bath temperature max. 60 °C

€49.00*

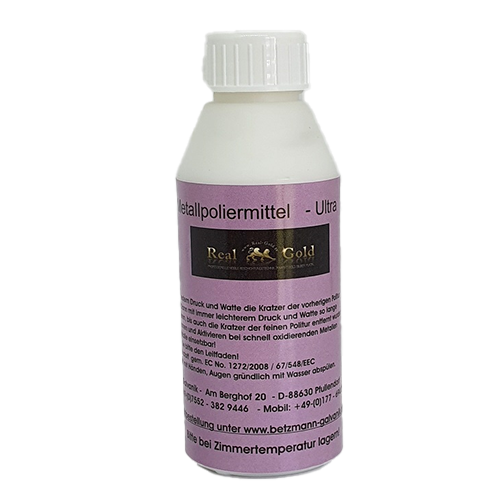

Metal Polish Ultrafine
