Graphite plate electrode 170 x 200 mm

€11.84*

Content: 1 Stück
(€10.00 ohne MwSt.)

Available, delivery time: 1-2 days

Maße
Product number: SW10030.2
PDF offer
Create PDF offer for this product Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product information "Graphite plate electrode 170 x 200 mm"

Product description "Graphite plate electrode".

Graphite plate electrode for bath electroplating



highly compressed ("isostatically pressed"), wear-resistant fine-grain graphite

excellent conductivity and chemical resistance

plate thickness 4 mm

available in sizes 50 x 80 mm, 100 x 150 mm and 170 x 200 mm

for bath electroplating and electrolysis, use: electrolytic cleaning, gold plating, silver plating, chrome plating, degreasing

as working or shielding surface for high temperature applications



Graphite electrodes are generally used in plating with chrome, copper, white bronze, rose gold, green gold, black chrome, black ruthenium, black rhodium, activation.



Actually, the graphite electrode is ultimate for all coatings.



The advantage is that in some coatings with stainless steel electrodes, the dislodged metal parts disturb the coating. This does not happen with graphite electrodes, because graphite

also filters out contaminated liquids.  They also need to be replaced occasionally as they slowly dissolve during coating.





Features Used for
Doesn’t contaminate Cleaner Activating and electro-cleaning
Its resistive properties help to heat the solution you’re plating with Chromium plating, which needs to be plated at 25 degrees celsius; its natural heating action helps to maintain the solution’s optimal temperature
Low cost Can be used for all plating processes but carbon electrodes deteriorate over a period of time and discolour swabs (discolouration does not affect the plating quality)



0 of 0 reviews

Leave a review!

Share your experiences with other customers.


Similar Items

White Palladium 10 Gramm per Liter
White Palladium Electrolyte with 10 Gram per Liter - The allergen-free alternative to nickel! White palladium electroplating or coating with palladium is a rather rarely used galvanic coating. However, white palladium plating can offer some advantages, especially as a substitute for electroplating nickel with a nickel electrolyte.    The advantages of white palladium electrolyte compared to electroless nickel plating: Typically, a nickel electrolyte is used to apply a barrier layer of nickel between copper and gold, preventing the two metals from mixing. However, a palladium plating offers several distinct advantages over the nickel electrolyte:   White palladium is more noble than nickel, meaning no surface corrosion occurs, and the palladium does NOT require extra activation prior to gold plating as nickel does.   The deposition rate and efficiency are excellent, which means there is no unwanted gas evolution. The electrolyte deposits bright silvery white, very light palladium which can be used as a bright "finish". Gold plating with the Betzmann gold electrolyte for pin electroplating achieves an optimum result on palladium. White palladium, in contrast to nickel electrolyte, is not carcinogenic and is therefore also permitted for private users!    A very good combination for gold plating of almost all metals is:  Alkaline or acid copper depending on the metal, palladium and finally gold.  All necessary electrolytes are available in our store. White palladium can be plated on the following metals:  Copper, nickel, brass, silver, gold, on all dechromed surfaces.   Recommended voltages:  Pin electroplating: from 3 volts - Bath electroplating: 3 - 4 volts. Recommended is graphite electrode or platinum electrode from our store. Palladium content: 10 grams per liter   Main benefits;   Makes a great alternative to rhodium plating giving an authentic 18 carat white gold or platinum plated look. palladium plating solution (unlike rhodium) doesn’t etch materials made of calcium carbonate such as pearl and coral, so you won’t have to worry about masking out these materials before submerging them in your palladium plating bath. can be used as a substitute for nickel as a barrier layer for gold plating on copper and its alloys. can be used as an alternative to silver as it doesn’t tarnish and is hard-wearing. Very low porosity – excellent for corrosion protection. Readily wettable by solder and dissolves a lot more slowly than gold in the solder making it an excellent top coat over gold for electrical contacts. Operating Parameters and Deposit Data   Voltage Range 3.0 – 3.5 Temperature 18 – 25 °C Palladium Concentration 10g/l Electrode Carbon or Platinum Palladium content in plate 99.9% (balance carbon, nitrogen) Lightness (L*) of deposit 65 (Cielab) Plating Rate at (3.5 volts, carbon electrode) 0.6 micron per minute Hardness 488 Hv Density of deposit 11.85 g/cm3 Stress Stressed Special storage requirements None Shelf life 1 – 2 years Health and Safety classification Irritant Special considerations None Transport (UN number) None: Not classified as dangerous for transport      Signalword: Warning    H-phrases: H332 Harmful by inhalation. H312 Harmful in contact with skin. H302 Harmful if swallowed. P phrases: P280 Wear protective gloves/protective clothing/eye protection/face protection. P301 IF INFECTED:P310 Immediately call a POISON CENTER/doctor/.

Content: 0.05 Liter (€2,260.00* / 1 Liter)

€113.00*
Platinum Solution 2 G./Liter
Platinum Electrolyte with 2 Gramm Platinum per Liter! Platinum Bath - Platinizing with Betzmann Electroplating    Platinum is characterized by high abrasion resistance and gives a noble gray surface. Alternative: White palladium   The platinum bath from Betzmann Galvanik deposits corrosion-resistant, very bright and shiny platinum layers up to a thickness of 0.5 - 1.0 µm. It is suitable for both decorative and technical applications and is very well suited for pin, bath and pad electroplating!..   Operating data: Platinum content: 2.0 g/L pH-value: <1 Density: 1.08 g/ml, increasing   Working conditions: Voltage: from 3 volts Bath temperature: 30 - 40 °C Exposure time: 2 - 4 min. Anode material: platinized titanium Anode/cathode surface: 1 : 1 Fabric movement: required Recommended speed: 2 - 8 cm/sec. Deposition rate: approx. 11 mg/Amin; approx. 0.5-1.5 A/dm2 Bath movement: recommended     Precipitation data: Hardness: 500 HV Layer thickness: max. 1.0 µm Fineness: 99,9%   Delivery form: Ready to use 2 g/L Pt       Features Applications High concentration of platinum – 2 grams per litre Suitable for brush plating both decorative and functional items such as jewellery and electrical connectors     Operating Conditions and Deposit Data Voltage Range 3.0 – 5.0 volts Temperature 20 – 25 °C (25 °C preferred) Platinum concentration 2 g/l Electrode Platinum - Carbon Platinum content in plate Above 99.9% Plating Rate at (3.5 volts, Platinum electrode) Approx. 0.25 micron per minute (spot) – see notes) Hardness 405 Hv Density of deposit 21.4 g/cm3 Electrical resistivity of deposit 9.8 micro ohms/cm Stress Not determined Special storage requirements None Shelf life Over 2 years Health and Safety classification Irritant Special considerations None Transport (UN number) 2796   Notes: We strongly advise against the use of stainless steel anodes for most of our plating processes. Higer voltages give greater plating rates, however more gas is liberated and a mist mask is recommended. Plating rates are calculated over a sample area which is permanently covered by swab. Will plate directly onto freshly prepared nickel or stainless steel. Hazard statements H314 Causes severe skin burns and eye damage. Precautionary statements P280 Wear protective gloves/protective clothing/eye protection/face protection. P302 IN CASE OF CONTACT WITH SKIN: P352 Wash with plenty of water. P332 If skin irritation occurs: P313 Get medical advice/attention. P362 Take off contaminated clothing.

Content: 0.05 Liter (€290.00* / 1 Liter)

€14.50*
White Bronze Mixer
White Bronze Mixer  Just like the other ‘mixer solutions’ we sell, Bronze Mixer can be added to our new copper solution to create a beautiful shade of freshly cast bronze. This brand new solution, exclusive to Real Gold, has been introduced as a replacement for nickel plating solution. Nickel is now banned by the EU for use in the cosmetic industry, as it causes nickel allergy in some people. White Bronze is the ideal substitute for nickel plate, where the surface of the metal is likely to come into contact with the skin, such as on costume jewellery or on spectacle frames. The main uses are listed below. A replacement for nickel to stop nickel allergy. Replaces nickel for use as a barrier layer when electroplating gold onto copper or brass. Makes an excellent key layer when plating silver onto pewter, Britannia metal or other high-tin alloys. Is similar in hardness to nickel with the electrical properties of silver but with superior corrosion resistance. White bronze makes an excellent undercoat forblack chrome. As with our other mixer solutions, you have the same flexibility to create the exact shade of bronze you require. At a low mix ratio it plates an attractive gold shade (2N) of bronze, a white, tarnish resistant coating which resembles nickel. The highest ratio is more like bright chrome.     Features Used for When mixed with our Copper Plating Solution to create white bronze, can be used as a replacement for nickel to comply with EU legislation and avoid nickel allergy Plating any items that will be handled or otherwise come into regular contact with the skin, for example jewellery, lighters and musical instruments Non-tarnish and silver-like in appearance Can be used as a low-cost, tarnish resistant alternative to silver plate for example when repairing musical instruments or up-cycling silver plated antiques Effective as a barrier layer Can be used for plating on non-conductive surfaces; makes an excellent barrier layer between copper/brass and gold – ideal for plating on non-conductive surfaces Base coat Plating an excellent undercoat for black chrome and when plating silver onto pewter, Britannia metal or other high-tin alloys.   Mixing ratio; 1 part Copper Plating Solution to 2 parts White Bronze Mixer – leave to stand for 15 minutes before using     Kennzeichnung gem. CLP-VO Symbolwort: Achtung H315 Verursacht Hautreizungen. H319 Verursacht schwere Augenreizung. H335 Kann die Atemwege reizen P261 Einatmen von Staub/Rauch/Gas/Nebel/Dampf/ Aerosol vermeiden. P305 + P351 + P338 BEI KONTAKT MIT DEN AUGEN: Einige Minuten lang behutsam mit Wasser spülen. Eventuell vorhandene Kontaktlinsen nach Möglichkeit entfernen. Weiter spülen.

Content: 0.05 Liter (€572.00* / 1 Liter)

€28.60*
Storage cup for Deluxe Plater
Storage cup for the professional coating machine 50 Ampere Betzmann Galvanoshop:    This stable cup with screw cap fits perfectly into the holder of the professional electroplating unit. Capacity 300 ml. On request, you will receive the appropriate labelling for the material to be stored.

€4.90*
Rosegold Solution 18 Karat
Rosegold Solution from Betzmann Galvanik This Rose Gold Brush/Pen Plating Solution (18 Karat) doesn’t have to be mixed beforehand. It can be used for both brush and pen plating. You can use either the Platinum Electrode (2.5 – 3.0 volts) or the Carbon Electrode (2.0 – 2.5 volts) with this solution. One of the outstanding qualities of the solution is that it plates very fast compared to other brush plating solutions. You can compare the plating rates using our online brush plating calculator on the links bar above.   Failure to observe the above precautions will result in the degeneration of the gold component in the solution. This will cause copper-rich plating, which will tarnish quickly.   Please see below for more products related to Rose Gold Brush/Pen Plating Solution (18 Karat). Recommended electrode: Carbon, Voltage: 3 – 3.5     Gold Concentration 9.1g/l Voltage Range (Platinum Electrode) 2.5 – 3.0 volts* Voltage Range (Carbon Electrode) 2.0 – 2.5 volts* Electrode Carbon Alloy consistency (at mix ratio 1Mixer:10 K-Gold) 75% Gold, 25% Copper Colour designation 5N Temperature 20 – 25 °C Plating Rate at (3.3 volts, carbon electrode) Approx. 0.5 microns per minute (max) Hardness Hard: In excess of 250 – 300 Hv Density of deposit 14.4 g/cm3 Stress Medium Special storage requirements Away from sunlight Shelf life 1-2 years (please refer to notes below) Health and Safety classification Irritant Special considerations None (cyanide-free) Transport (UN number) None: Not classified as dangerous for transport * The lower voltage range should be applied when using smaller swabs. Notes: Remove any existing layers of rose gold before plating. Store in hermetically sealed container with lid firmly closed. Small volumes for day-day use should be stored in a stoppered syringe. Higher voltages can be used with plating rates in excess of 3 micronsper minute (spot).A lower voltage range is recommended when plating above 1 micron to preventdullness and subsequent polishing.

Content: 0.05 Liter (€1,210.00* / 1 Liter)

€60.50*
Storage Cup transparent
The perfect storage cup for electrode and cloth pad transparent with black lid Large storage beaker - Betzmann Galvanik  This stable beaker with screw cap made of PET holds approx. 370 ml. It is practical for storing the electrode with the fabric pad in the respective electrolyte. On request, you will receive the appropriate labeling for the material to be stored.   PET can with screw cap clear - 370 ml with plastic screw cap black 70 mm

€2.90*
Activator
Galvano activator and decapping agent in one - stainless steel and nickel activator in one - from Betzmann GalvanikThe GALVANO AKTIVATOR from Betzmann Galvanik removes oxide layers on base metals to enable electroplating or electroless plating. The electroplating activator is required, for example, for electroless nickel plating of aluminium or to activate stainless steel, nickel, brass and chrome for electroplating.Discover the versatile application of the activator or decapping agent in electroplating! The activator / decapping agent is an indispensable aid for the decapping and preparation of surfaces before plating in the electroplating industry. It is used to activate surfaces of metals such as steel, copper and copper alloys as well as passive nickel layers. Decapitation removes impurities from surfaces and simultaneously prepares them for the plating process. This process is crucial to ensure optimum adhesion and durability of the coating. After alkaline pre-treatment, the decapping agent is also perfect for neutralising. It ensures that work with sulphuric or hydrochloric acid is no longer necessary, which not only increases efficiency but also improves work safety.With Betzmann Galvanik's decapping agent, you can effectively pre-treat the surface of your products to achieve high-quality electroplated coatings. Rely on its proven performance to optimise your electroplating processes and achieve outstanding results.Field of application: Pre-treatment and cleaner - General applicationThe object is either immersed in the activator for 30 to 60 seconds and then briefly rinsed with clear water or coated with the pad for at least 30 seconds from 2.7 volts. The activator removes thin layers of oxide that are invisible to the naked eye. Carry out further coating quickly after the activator bath, as these layers quickly form again with atmospheric oxygen (time period: max. 10 - 30 minutes) Recommended electrode: Stainless steel electrode or graphite electrode!  Recommended voltage: from 2.7 volts Regulation (EC) No. 1272/2008 Signal word: Warning Pictograms: H319 Causes serious eye irritation Hazard statements P280 Wear protective gloves/protective clothing/eye protection/face protection. P305+P351+P338 IF IN EYES: Rinse cautiously with water for several minutes. Remove any contact lenses if possible. Continue rinsing. P337+P313 If eye irritation persists: Get medical advice/attention.

Content: 0.25 Liter (€33.60* / 1 Liter)

€8.40*
Brass Effect Mixer
Ratio of Brass Effect Gold Mixer to K-GoldShade ProducedRemarks1:10Resembles freshly polished 70/30 brass14 carat alloy. May require polishing1.5:10 (see note below)Becomes lighter When plating on to stainless steel, nickel and its alloys, first plate a layer of 24 carat gold using Gold Solution or GoldflashOther informationPlating rate2.6 microns per minute (1:10 ratio, 3 volts, Carbon Electrode)Temperature20 – 25 °CElectrodeCarbonSpecial storage requirementsNoneShelf lifeUp to six monthsHealth and Safety classificationIrritantSpecial considerationsNoneTransport (UN number)None: Not classified as dangerous for transport Notes:The shade can be varied by altering the mix ratio. Increase the ratio for lighter shades; decrease for darker shades. Signal word Warning  Hazard statement(s). H316 Causes mild skin irritation. H320 Causes eye irritation. H335 May cause respiratory irritation. Precautionary statement(s) P261 Avoid breathing dust/ fume/ gas/ mist/ vapours/spray.  P305 + P351 + P338 IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing.  Supplemental Hazard none

Content: 0.025 Liter (€1,428.00* / 1 Liter)

€35.70*
Black Rhodium
Black Rhodium - black rhodium plating by Betzmann Galvanik   The ready-to-use black rhodium electrolyte is suitable for both pin, pad and bath electroplating!   It deposits dark anthracite-gray, extremely decorative rhodium layers. The layers are very abrasion resistant, color consistent and uniform.   The Black Rhodium Electrolyte from Betzmann Galvanik is preferred for decorative coatings in the jewelry and eyewear industries. This black rhodium electrolyte is characterized by simple bath management and very user-friendly handling. It also operates at room temperature, which means that time- and energy-consuming heating can be omitted. Layers down to 0.5 µm can be deposited.   Operating data: Rhodium content: 2.0 g/l Rh pH value: <1 Density: 1.02-1.07 g/cm3   Working conditions: Voltage: 2.7 -3 volts Bath temperature: 20-27°C Exposure time: 2 min. (1-5 min.) Mixed oxide anodes/platinized titanium, graphite electrode Anode/cathode surface: 1 : 1 Current density: 1.0-1.5 A/dm2 Fabric movement: required Bath filtration: from 10 liters deposition rate: 6-8mg/Amin   Precipitation data: Hardness: 300-370 HV Layer thickness: max. 0.5 µm Density: approx. 10.5 g/cm3   Delivery form:   Ready for use  A descaling with 10% sulfuric acid of the surface to be coated is recommended! For guidelines see download area! Darker coatings can be obtained with our blackening additive   Safety:    Signal word: Danger   H-phrases: H290: May be corrosive to metals. H314: Causes severe skin burns and eye damage. H412: Harmful to aquatic life with long lasting effects. P phrases: P102: Keep out of the reach of children. P234: Keep only in original container. P260: Do not breathe aerosol. P280: Wear protective gloves / eye protection. P301 + P330 + P331: IF INTOXICATED: Rinse out mouth. Do NOT induce vomiting. P303 + P361 + P353: IF IN CONTACT WITH SKIN (or hair): Remove all contaminated clothing immediately. Wash skin with water/shower. P305 + P351 + P338: IF IN EYES: Rinse cautiously with water for several minutes. Remove existing contact lenses if possible. Continue to rinse. P501: Dispose of contents/container to hazardous waste.  Causes severe skin burns and eye damage. Toxic to aquatic life with long lasting effects. IF IN EYES: Rinse cautiously with water for several minutes. Remove existing contact lenses if possible. Continue to rinse. Absorb spillage. Keep under lock and key. Dispose of contents/container properly.

Content: 0.05 Liter (€952.00* / 1 Liter)

€47.60*
Tin
Tin Solution - Tin Electrolyte - self tinning from Betzmann Galvanik    Our versatile tin plating solution is used in applications ranging from the cookware industry to high-end electronics. Recommended electrode: platinum electrode or graphite electrode From 3 volts    Can be plated on copper, nickel or thin gold layer Please note: This is an air sensitive solution. When not using the solution, keep the lid tightly closed and take steps to minimize air space in the bottle.   You can do this by adding marbles or glass beads to the bottle, squeezing out the excess air at the top of the bottle, or drawing up the solution and storing it in one of our storage syringes.   Failure to follow the above precautions may result in degeneration of the tin in the solution.   Features Applications It plates fast and can be brought to a high shine using MPU or MPU course. non-toxic finish makes it a good choice for coating cooking utensils   useful in electronics and plumbing as it aids solderability – no need for fluxes   low tarnish finish that polishes well      Labelling according Regulation (EC) No 1272/2008 Pictogram Signal word Warning Hazard statement(s). H316 Causes mild skin irritation. H320 Causes eye irritation. H335 May cause respiratory irritation. P261 Avoid breathing dust/ fume/ gas/ mist/ vapours/spray. P305 + P351 + P338 IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing.

Content: 0.1 Liter (€297.50* / 1 Liter)

From €15.47*
Black Chrome - Smoky Chrome
Black Chrome - Smoky Chrome by Betzmann Galvanik      This dark anthracite to slightly black shiny look is now popular for many car parts or cell phones and is a very good alternative to black rhodium or black ruthenium. Alternative to black rhodium or black ruthenium.   Black chrome is a spectacular finish and always an eye catcher.   Recommended electrode: Carbon Electrode 10 Volt - Platinum electrode 11 Volt.     Plating on degreased copper, nickel, gold flash or any other gold plating.    Operating Conditions and Deposit Data Voltage Range 9 – 11 volts (see notes) Temperature 20 – 30 °C Lightness (L*) of deposit 65 – 70% Electrode Carbon or Platinum Electrode (see notes) Chromium content in plate 99% (balance carbon) Plating Rate at (10 volts, Carbon Electrode) Approx. 2 micron per minute (spot) Maximum plating thickness 3 microns Hardness (as plated) 800 Hv (see notes) Hardness after heat treatment 1500 – 1600 Hv (see notes) Density of deposit 7.2 g/cm3 Stress Hi stress Special storage requirements None Shelf life 1 – 2 years Health and Safety classification Not classified as dangerous Special considerations None Transport (UN number) None: Not classified as dangerous for transport   Notes:   Heat treating at 220 °C increases the hardness of the deposit from 800 to 1600 Hv. The voltage should be raised from 10 volts if using a Carbon Electrode to 11 volts whenusing a Platinum Electrode. We strongly advise against the use of stainless steel anodes for most of our plating processes. Plating rates are calculated over a sample area which is permanently covered by swab.       Labelling acc. to CLP-VO: Symbol word: Caution!  H319 Causes severe eye irritation. P101 If medical advice is needed, have container or label at hand. P102 Keep out of the reach of children. P305 IF IN EYES:P351 Rinse cautiously with water for several minutes. P338 Remove contact lenses if possible. Continue to rinse. P337 + P313 If eye irritation persists: Get medical advice/attention.

Content: 0.05 Liter (€572.00* / 1 Liter)

€28.60*
Palladium 10 Gramm per Liter
  Palladium Solution from Betzmann Galvanik with 10 Gramm per Liter - as nickel substitute - barrier layer or as hard decorative top layer!    Palladium electrolyte - The allergen-free alternative to nickel! Palladinizing or plating with palladium is a rather rarely used galvanic coating. However, palladium plating can offer some advantages, especially as a substitute for galvanic nickel plating with a nickel electrolyte.  The advantages of palladium electrolyte compared to electroless nickel plating: Typically, a nickel electrolyte is used to apply a barrier layer of nickel between copper and gold, preventing the two metals from mixing. However, a palladium plating offers several distinct advantages over the nickel electrolyte: Palladium is more noble than nickel, meaning there is no surface corrosion, and the palladium does NOT require extra activation prior to gold plating as nickel does. The deposition rate and efficiency are excellent, i.e. there is no unwanted gas evolution. The electrolyte deposits silvery white, very bright palladium which can be used as a bright "finish". Gold plating with the Betzmann gold electrolyte for pin electroplating achieves an optimum result on palladium. In contrast to nickel electrolyte, palladium is not carcinogenic and is therefore also permitted for private users!  A very good combination for gold plating of almost all metals is:  Alkaline or acid copper depending on the metal, palladium and finally gold.  All necessary electrolytes are available in our store. Palladium can be plated on the following metals:  Copper, nickel, brass, silver, gold, on all dechromed surfaces.   Recommended voltages:  Pen - Brush electroplating: from 3 volts - Bath electroplating: 3 - 4 volts. Recommended is graphite electrode or platinum electrode from our store. Palladium content: 10 grams per liter   Main benefits;  Makes a great alternative to rhodium plating giving an authentic 18 carat white gold or platinum plated look. palladium plating solution (unlike rhodium) doesn’t etch materials made of calcium carbonate such as pearl and coral, so you won’t have to worry about masking out these materials before submerging them in your palladium plating bath. can be used as a substitute for nickel as a barrier layer for gold plating on copper and its alloys. can be used as an alternative to silver as it doesn’t tarnish and is hard-wearing. Very low porosity – excellent for corrosion protection. Readily wettable by solder and dissolves a lot more slowly than gold in the solder making it an excellent top coat over gold for electrical contacts. Operating Parameters and Deposit Data   Voltage Range 3.0 – 3.5 Temperature 18 – 25 °C Palladium Concentration 10g/l Electrode Carbon or Platinum Palladium content in plate 99.9% (balance carbon, nitrogen) Lightness (L*) of deposit 65 (Cielab) Plating Rate at (3.5 volts, carbon electrode) 0.6 micron per minute Hardness 488 Hv Density of deposit 11.85 g/cm3 Stress Stressed Special storage requirements None Shelf life 1 – 2 years Health and Safety classification Irritant Special considerations None Transport (UN number) None: Not classified as dangerous for transport       Signalword: Warning    H-phrases: H332 Harmful by inhalation. H312 Harmful in contact with skin. H302 Harmful if swallowed. P phrases: P280 Wear protective gloves/protective clothing/eye protection/face protection. P301 IF INFECTED:P310 Immediately call a POISON CENTER/doctor/. Operating Parameters and Deposit Data

Content: 0.05 Liter (€2,260.00* / 1 Liter)

€113.00*
Rosegold Mixer
Rosegold Mixer - Betzmann Galvanoshop: Simply add Rose Gold Mixer to K-Gold to plate fabulously warm, lustrous tones of rose gold.All you need to do is mix the two together to create just the right amount of solution you need. We recommend you buy the mixing kit to make sure you measure out the correct ratios.A 1:10 mix will give you a darker shade of rose gold commonly used for eastern European jewellery,while a mix of 2:10 gives a mix not too dissimilar to highly polished pure copper, however this one does not tarnish. If plating on to stainless steel, nickel or its alloys, first plate a layer of 24 carat gold or Goldflash to give a good, solid base on which to plate your Rose Gold layer.   Features Used for Rose gold plate is very hard compared to pure gold. Great for plating items subject to a high-wear environment (jewellery). Plates fast. Reduces plating time. When mixed with K-Gold, creates the classic warm tones of rose gold. Selective plating of a range of personal items for example jewellery and watch cases and straps. Can be used on larger items such as silverware and picture frames. Redder deposits can be obtained by increasing the volume of mixer. Greater flexibility in colour matching. Consistency of alloy throughout process sequence. Very useful especially when plating large work or plating to higher thickness: the shade of gold plated doesn’t change.   Instructions for use Carbon Electrode3 – 3.5 volts20 – 25 centigrade Ratio of Rosegold Mixer to K-Gold Shade Produced   Remarks 1:10 Yellow-red shade   18 carat alloy (75% gold, 25% copper). Plates fast (up to 1.5 microns per minute). Bright, hard gloss finish. 1.5:10 (see note below) Becomes redder   15 carat gold alloy (62.5% gold, 37.5% copper) Plates bright and fast. 2:10 (see note below) Red gold   12 carat alloy – (50% gold, 50% copper). If wanting to plate over 0.25 microns, plate until it goes dull, polish with MPU and then plate again. 4:10 (see note below) Red gold   Below 10 carat alloy. Tarnishes readilly and not recommended for decorative purposes. Notes: Rose gold mixes above 1:10 are a lot more susceptible to tarnish than mixes of 1:10 and lower Remove any existing layers of rose gold before plating    Labeling gem. CLP-VO:   Signal word: Caution  H315 Causes skin irritation H319 Causes severe eye irritation. H335 May cause respiratory irritation. P261 Avoid breathing dust/fume/gas/mist/vapor/aerosol. P280: Wear protective gloves/protective clothing/eye protection/face protection. P305 IF IN EYES:P351 Rinse cautiously with water for several minutes. P338 Remove any contact lenses if possible. Continue to rinse.

Content: 0.02 Liter (€825.00* / 1 Liter)

From €16.10*
Anode sleeve fuzzy
Anode pad / tampon / anode sleeve / fuzzy sleeve / replacement fabric pad puffy from Betzmann Galvanik.    This puffy fabric pad / anode sleeve or also called tampon is absolutely recommended for all plating processes. Optimally suitable for all coatings and electrolytes.  The coating of larger areas is also quite fast with this pad.   The insertion hole is larger than the electrode and therefore it happens that the moist  anode pad slips off. Therefore, fix the pad on the electrode with a small rubber band.

€2.38*
Covering pen
Covering pen for partial coating Betzmann Galvanotechnik:   Use this concealer pen to cover areas that are not to be coated. Simply apply the liquid agent, let it dry and then you can coat. After the process, simply rub off like an eraser.

Content: 0.025 Liter (€640.00* / 1 Liter)

€16.00*
Anoden Stoffpad dick Mehrlagig
Anodenstoffpad  - Anodenhüllen dick mehrlagig - Ersatzhüllen für die Tampon Galvanik von Betzmann Real Gold   Dieser dicke Pads besteht aus mehreren zusammen genähten Lagen Stoff und eignet sich hervorragend für die Beschichtung größerer Flächen, aber auch für Teile mit Gittern wie z.B. einKühlergrill  usw. Am unteren Ende befinden sich 2 Einschublöcher für den Anodenstab. Falls dieser sich oben schon durch den Stoff gearbeitet hat, kann man den Pad durch Einstecken in das andereEinschubloch weiterhin benutzen. Bitte vor Anwendung den Pad gründlich durchnässen, sonst leitet er nicht.     Cotton Sleeve Big: This durable cotton anode Sleeves are custom designed to reach into tight recessed areas. Easy on, easy off, no rubber bands.

€2.50*
Smoky Nickel
Product Information Betzmann Electroplating - Black Nickel Electrolyte   Our black nickel electrolyte for galvanic blackening of metals   This new black nickel electrolyte conjures a dark to black surface directly on stainless steel, brass or copper! polish surface if necessary degrease and activate Black nickel plating from 3 volts optimal with platinum electrode!   Like all nickel electrolytes, this one is not suitable for coating metals worn on the skin! A special surface sealing is not necessary. Temperature resistance up to approx. 200 degrees!     In many cases, a base layer of normal nickel is recommended for components made of the metals mentioned for long durability, especially on copper and its alloys in outdoor applications. This increases the corrosion resistance and leads to better results. For this bright nickel layer we recommend the normal nickel Free. Before applying the Smoky Nickel, prepare the component with great care to achieve the best results. This includes, above all, thorough cleaning and absolutely grease-free surfaces. Therefore, remove all impurities such as dirt, flash rust and the like and use for our electrocleaner! Wear protective gloves already during the degreasing process to prevent skin grease from being deposited on the component.   The black nickel is suitable for use in bath electroplating as well as for pin electroplating. The following anodes are suitable for the smoky nickel: Nickel anodes Graphite anodes Platinum anodes Stainless steel anodes permitted for pin electroplating For plating, the anode is switched to positive and the workpiece to negative.   Observe the formation of gas bubbles closely during the electroplating process. If too many gas bubbles rise on the workpiece, the voltage must be reduced. This also applies if an intense black coloration appears in places. If no deposition occurs, the voltage is too low and must be carefully increased. All in all, deposition is slower with black nickel electrolytes than with normal nickel electrolytes.   Wear appropriate protective clothing throughout the process and ensure good room ventilation.   Parameters (these may vary, please test): Bath electroplating: 2-8V (approx. 3-5V recommended). Pin plating: 6-10V (approx. 6-8V recommended) Current density: 1-5 A/dm² Working temperature: 15-50°C pH value: approx. 4-5 (can be corrected e.g. with citric acid or sulfuric acid) Deposition rate: approx. 0.5μm/min at 2.5A/dm² and 20°. Blackness L* (CIE Lab measurement): 42-47     Smoky Nickel - Schwarz Nickel Signal word: Caution H-phrases: H317: May cause an allergic skin reaction. P phrases: P102: Keep out of the reach of children. P260: Do not breathe aerosol. P280: Wear protective gloves / eye protection. P302 + P352: IF ON SKIN: Wash with plenty of water. P501: Dispose of contents/container to special waste   Operating Conditions and Deposit Data Voltage Range 2.5 – 4.0 volts Temperature 18 – 40 °C Nickel Concentration 74 g/l Electrode Platinum (see notes) Blackness L* (CIE Lab measure) 40 – 45 Plating Rate at (3.5 volts, Platinum electrode) Approx. 0.5 micron per minute (spot) Hardness 450 – 480 MPa (Vickers) Density of deposit 8.5 g/cm3 Stress High stress Special storage requirements None Shelf life Over 5 years Health and Safety classification Harmful Special considerations None Transport (UN number) None: Not classified as dangerous for transport Notes: We strongly advise against the use of stainless steel anodes for most of our plating processes Plating rates are calculated over a sample area which is permanently covered by swab.

Content: 0.05 Liter (€238.00* / 1 Liter)

€11.90*
White Rhodium
White Rhodium: Our Rhodium Tank Plating Solution delivers very bright, white layers of rhodium electroplating and has been formulated for long life. It can be operated in both fast (40 °C) and slow mode (room temperature) – see Tech Specs. This solution has an extra long shelf life of over 5 years. Rhodium concentration: 2 grams per litre. Plating Solution Features Used for   Rhodium Highly reflective and corrosion resistant, lustrous appearance Hardest precious metal Rhodium concentration: 2 gms per litre   Plating over white gold alloy (typically 75% gold with balance palladium, platinum or silver) to give a brilliant finish Non-tarnish coating for silver Plating in a small beaker or tank     Operating Parameters Not required Rhodium Concentration 2 g/l Plating Factor 0.02 A/cm2 Plating Rate (PF: 0.02) 0.08 micron/min at 40 °C (fast mode – see notes) Plating Rate (PF: 0.02) 0.04 micron/min at 20 °C (slow mode – see notes) Recommended thickness 0.1 – 0.3 micron Maximum thickness 0.7 micron Lightness (L*) of deposit 75 – 78% Voltage 1-3 volts pH <1.0     Anode Mesh Agitation   Hardness 900-950 Hv Stress (tensile) High (tensile) Special storage requirements None Shelf life Over 5 years Health and Safety classification Corrosive Special considerations None Transport (UN number) 2796

Content: 0.05 Liter (€940.20* / 1 Liter)

€47.01*

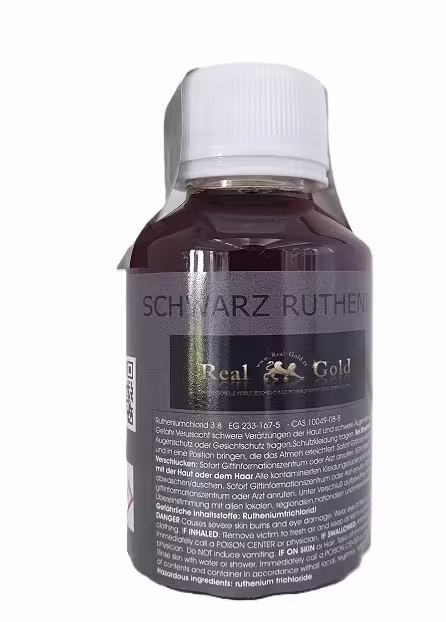

Black Ruthenium
